Kawasaki Precision Machinery Ltd have over 80 years' experience in hydraulic technology. Kawasaki is world famous for the reliability and controllability of its Hydraulic products which are found in almost any high power application from industrial vehicles and presses, plastic moulding machines, off shore winch machinery (Staffa Motors) to mining and tunnelling equipment.  The Staffa High Torque, Low Speed Radial Piston Motor has maintained market leadership for over 35 years & found all the Marine & Offshore Winches. The K3VL pumps have replaced the most reputed brands due to its superior design, rating, pricing  & availability.
Kawasaki is a total system engineering company, leading the way in hydraulics and supplying equipment for a huge range around the globe. The name Kawasaki has become synonymous with quality and innovation of applications including industrial, construction and marine fields. Kawasaki has been developing expertise in hydraulic machinery for nearly 100 years- now their products can be found around the world on land and sea.
Kawasaki Heavy Industries is a leader in its fields of engineering and technology. Established in 1968, Kawasaki Precison Machinery, an integral part of Kawasaki Heavy Industries, is a leading manufacturer of hydraulic systems and components; synonymous with quality and innovation in hydraulic pumps, motors, valves and complete systems across the whole spectrum of applications.

K3VL series

Kawasaki K3VL axial piston pumps are designed to satisfy the marine and mobile industrial machinery market where a medium/high pressure variable displacement pump is required…

Kawasaki K3VL axial piston pumps are available in nominal displacements ranging from 45 to 200 cm3/rev (K3VL45, K3VL80, K3VL112, K3VL140 and K3VL200) with various pressure, torque limiter, and a combination of load sensing control options.

The components of the K3VL pump can be divided into three sub-groupings:

  • Rotating Group – Providing the main rotary pumping action;
  • Swash Plate Group – Varying the pump's delivery flow rate;
  • Valve Cover Group – Providing the switching of oil between suction and delivery ports.

Key features include: Small installation envelope , through drive, SAE and metric ports, side and rear porting, vertical mount capability, multiple drain ports, clockwise and counter clockwise rotation, opposed stroking pistons, rated pressure 320 bar, swash plate pillow support, maximum displacement stop, servo assist springs, hydrostatic pillow bearing, overcentre bleed, pressure compensation, integral proportional pressure, load sensing, integral unload, torque limiter, rigid construction, long life roller bearings, various sealing options, low pulsation, proven rotating group, separate swash plate, spherical valve plate, super-finished bores and solid pistons.


The K3VL series swash plate type axial piston pumps are designed to satisfy a variety of construction and off-highway applications where a medium to high pressure variable displacement pump is required.

  • 28 to 200cc displacements
  • 320 bar continuous pressure rating
  • Load sensing, torque limiting and electronic displacement control
  • Integral impellor pump available on 200cc unit
  • Features

    • High Pump Efficiency
    • Low Noise
    • Wide range of control options

  • Specs

    Model            K3VL
    28
    K3VL
    45
    K3VL
    80
    K3VL
    112
    K3VL
    140
    K3VL
    200
    K3VL
    200H
    *1
    Displacement (cm3) 28 45 80 112 140 200 200
    Pressure (MPa) Rated 32 32 32 32 32 32 32
    Peak 35 35 35 35 35 35 35
    Max Self Priming Speed (min-1) 3,000 2,700 2,400 2,200 2,200 1,900 2,200
    Mass (approx.) (kg) 20 25 35 65 65 95 130

    *1 Under development

  • Control Curve

  • Applications

    • Excavators
    • Wheel Loaders
    • Crawler Drills/ Pile Drivers
    • Cranes (Crawler / Rough Terrain )
    • Truck Mounted Cranes
    • Concrete Pumps
    • Crushers
    • Asphalt Pavers
    • Forklift Trucks
    • Manlifts / Fire Engines
    • Trucks
    • Tractors
    • Combine Harvesters
    • Sprayers
    • Rice-Planting Machines
    • Forestry
    • Plastic Machinery & Die Casting
    • Press Machines
    • Waste Treatment
    • Oceanic Machines
    • Cargo Vessels
    • Oil Tankers
    • Offshore Vessels

  • Download Kawasaki K3VL Datasheet

    Please fill in your email below to access the free PDF

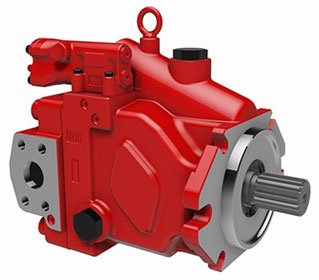

K3VLS series

Kawasaki’s new medium duty pump, the K3VLS, has been developed for machines and equipment that use a load sensing control system and/or electric displacement control systems. Its launch follows extensive research and development as our engineers combined efficiency with simplicity to deliver the most technologically advanced pump on the market.

  • 65, 85 and 105cc displacements
  • 280 bar continuous pressure rating
  • 350 bar maximum pressure rating
  • Load sensing, torque limiting, power shift and electronic displacement controls
  • Features

    • High Pump Efficiency by applying the latest technologies
    • Compact and Light Weight Design provides flexibility in installation
    • Low Noise
    • Responsive and Stable Control Performance

  • Specs

    Model K3VLS
    50
    *1
    K3VLS
    65
    K3VLS
    85
    K3VLS
    105
    K3VLS
    125
    *1
    K3VLS
    150
    *1
    Displacement (cm3) 50 65 85 105 125 150
    Pressure (MPa) Rated 28 28 28 28 28 28
    Peak 35 35 35 35 35 35
    Max Self Priming Speed (min-1) 2,700 2,600 2,500 2,300 2,200 2,200
    Mass (approx.) (kg) 20 22 30 37 52 52

    *1 Under development

  • Control Curve

  • Applications

    • Wheel Loaders
    • Dozer
    • Backhoe Loaders
    • Track Loaders
    • Cranes (Crawler / Rough Terrain )
    • Truck Mounted Cranes
    • Crushers
    • Asphalt Pavers
    • Forklift Trucks
    • Telehandlers
    • Manlifts / Fire Engines
    • Trucks
    • Tractors
    • Combine Harvesters
    • Sprayers

  • Download Kawasaki K3VLS Datasheet

    Please fill in your email below to access the free PDF

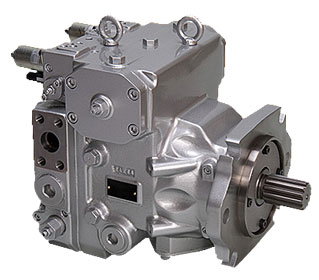

K8V series

The K8V series is Kawasaki’s new closed loop pump with excellent controllability and superior efficiency. It is used in hydrostatic transmissions ona variety of off-highway machinery.

  • 71, 90 and 125cc displacements
  • 400 bar rated pressure
  • Electronic and hydraulic displacement control
  • Through drive and tandem versions available
  • Features

    • World’s top-level pump efficiency and low noise
    • Precise flow control by position feedback of swash plate tilting position.
    • High reliability and Long life for high pressure spec.
    • Charge pump, High/Low pressure relief valve, and Cut-off valve are standard option.
    • Electric proportional control, Hydraulic pilot displacement control and Manual control are available.

  • Specs

    Model K8V71 K8V90 K8V125
    Displacement (cm3) 71 90 130
    Pressure (MPa) Rated 40 40 40
    Peak 45 45 45
    Max. speed (min-1) 3,300 3,050 2,850
    Weight (approx.) (kg) 57 72 95

  • Control Curve

  • Applications

    • Wheel Loaders
    • Dozer
    • Backhoe Loaders
    • Track Loaders
    • Dump Trucks
    • Crushers
    • Compactors
    • Asphalt Pavers
    • Forklift Trucks
    • Telehandlers
    • Combine Harvesters
    • Sprayers
    • Forestry

  • Download Kawasaki K8V Datasheet
